Temperature Transmiter - ASHMTT01

Temperature Transmiter - ASHMTT01
Temperature Transmiter - ASHMTT01
Temperature Transmiter - ASHMTT01

Temperature Transmiter - ASHMTT01

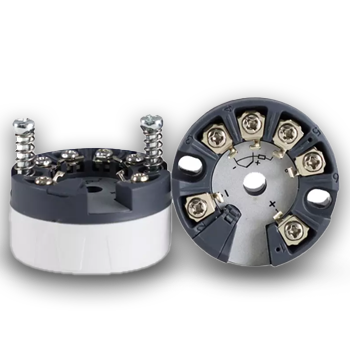

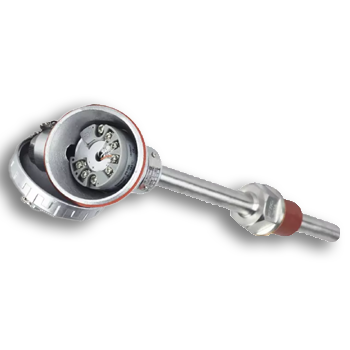

The ASHMTT01 by Alba Sensors is a single-input head-mounted temperature transmitter. Thermocouples and RTDs are accepted on the single input. For transmission to your system, all inputs are linearized and transformed into a 4-20 mA output that meets industrial standards. For your monitoring applications, use ASHMTT01.

• Available in Options with : Universal RTDs
• Accuracy : Class 1
Product Parameters
Input
Input Signal Resistance temperature detector (RTD), thermocouple (TC)
Code - junction compensation temperature scope -20∼60℃
Compensation precision ±1℃
Output
Output Signal 4...20mA(two-wire)
Load resistance RL≤(Ue-12)/0.021
Output current of upper and lower limit overflow alarm IL=3.8mA IH=21mA
Input Type And Transmission Precision
Type Measuring Range Minimum Measurement Range Conversion Accuracy
Pt100 -200∼850℃ 20℃ ±0.1% range or ±0.2℃
Cu50 -50∼150℃ 20℃ ±0.1% range or ±0.2℃
B 400∼1800℃ 500℃ ±0.1% range or ±1.5℃
E -100∼1000℃ 50℃ ±0.1% range or ±0.5℃
J -100∼1200℃ 50℃ ±0.1% range or ±0.5℃
K -180∼1372℃ 50℃ ±0.1% range or ±0.5℃
N -180∼1300℃ 50℃ ±0.1% range or ±0.5℃
R -50∼1768℃ 500℃ ±0.1% range or ±1.5℃
S -50∼1768℃ 500℃ ±0.1% range or ±1.5℃
T -200∼400℃ 50℃ ±0.1% range or ±0.5℃

Note :

1. The above accuracy data is obtained by testing at an ambient temperature of 20℃±2℃.

2. The output accuracy "%" is relative to the set range.

3. The cold junction compensation error needs to be added when the thermocouple is measured, and the internal cold junction compensation error is ≤±1℃.
