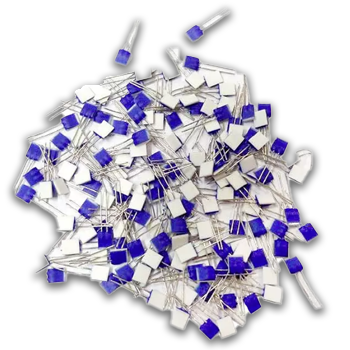

Thin Film RTD Elements

Alba Sensors' Thin film Platinum based elements offer Class A outputs using the most cutting-edge high-tech techniques, including laser spray plating, microphotography, and printing lithography. The resistance value is adjusted via digital trimming, which results in the highest level of accuracy.

Versions : PT50, PT100, PT500, PT1000, PT2000, CU50 & more.

Technical description :

• Temperature coefficient R100/R0=1.3851.
• After strictly picking up and indicating the exact value of each element at 0 centigrade.
• Film Pt thermal resistance element with ceramic and platinum specially made to maintain excellent stability under high temperature, suitable for use in the -70 C ~ 6OO temperature. The platinum film is spatter on the surface of the ceramic by laser, thus the thin film platinum thermistor element has good anti vibration and anti shock properties.
• The surface of the film is covered with ceramics, so the element can withstand high voltage and has good insulation.

Features :

• With quick thermal response Alba’s elements reduces dynamic error.
• It has small diameter & no limit on length.
• High measuring accuracy.
• Imported film resistor with high reliability and stability.
